FHP Automated Palletizer

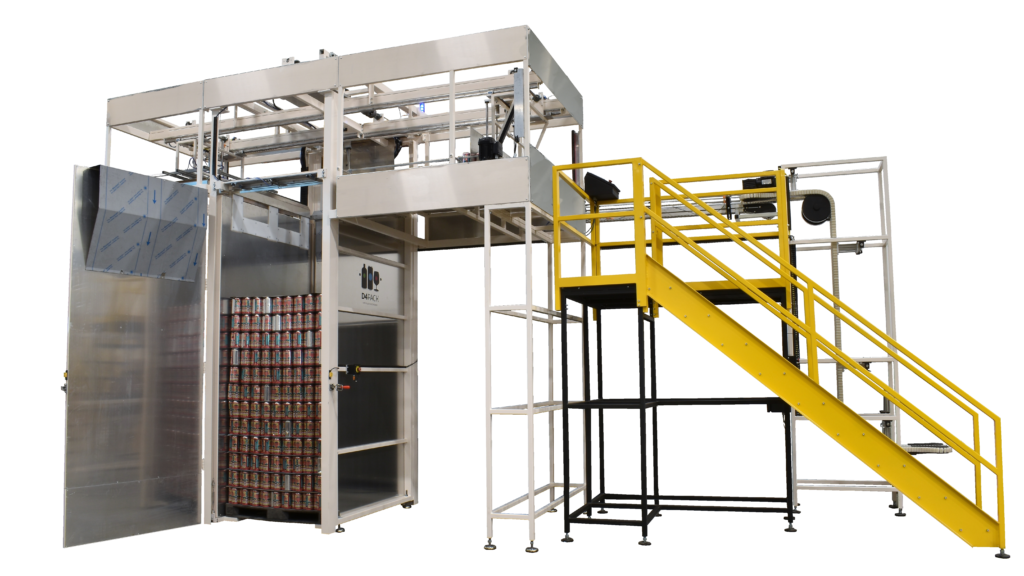

FHP Automated Palletizing System

The FHP bulk palletizer system is designed to prepare pallets of empty plastic containers or aluminum cans measuring 44”W x 56”L x (up to) 110” tall. The unit is configured to handle the range of container/can sizes and speed of your line.

The FHP automated palletizer efficiently palletizes lightweight plastic or metal containers. The palletizer operator is responsible for loading an empty pallet, starting the automatic sequence, securing pallet banding before and after completing the pallet build, placing slip sheets between layers, and removing the full pallet. Options to load/remove pallets and automatically place slip-sheet layers are available.

  • Industrial powder-coated finish for enhanced corrosion protection
  • Heavy-duty tubular carbon steel frame construction and aluminum side-walls
  • User friendly HMI touch screen (7” LCD) with auto/manual controls and fully integrated PLC with quick-access diagnostic screen
  • Accumulation table inside palletizer allows for continuous production
  • Integrated four-point cable-lift system built within the frame
  • Electrical panel safety disconnect/lockout and e-stop for operator safety
  • Product presets allow for tool-less product changeovers
  • Pinch-point guarding and safety signage throughout
  • 480v / 3 Phase / 60 Hz (additional voltages available)
  • 80-100 PSI clean air supply required – 2-3 CFM
  • User friendly HMI touch screen (7″ LCD) with auto/manual controls
  • Multicolor LED stack light indicator for pallet changeover and/or machine fault
  • Electrical panel safety disconnect/lockout and e-stop for operator safety
  • 480V/3 Phase/60Hz (additional voltages available)
  • 80-100 PSI clean air supply required – 2-3CFM
  • Fully integrated PLC with quick access diagnostic screen
  • Main screen shows how many layers are programmed and keeps count of how many layers have been stacked
  • Product presets allow for tool-less product changeovers

Click HERE to view larger image.

Palletizer dimensions

Watch Palletizer


Request a Quote

Machine Options

Ska Fab offers options to add additional automation to your palletizer. Options include automatic slip sheet placement, side-grip elevator, pallet destacker, light curtain, powered chain conveyor and operator access platform. Options to add custom powder-coated color and your company logo decal are also available.

Request a Quote

Watch palletizers in action

Ska Fab tests our equipment before shipping and during installation to ensure successful performance. Each video demonstrates the options purchased with that particular unit.

Wipe Container

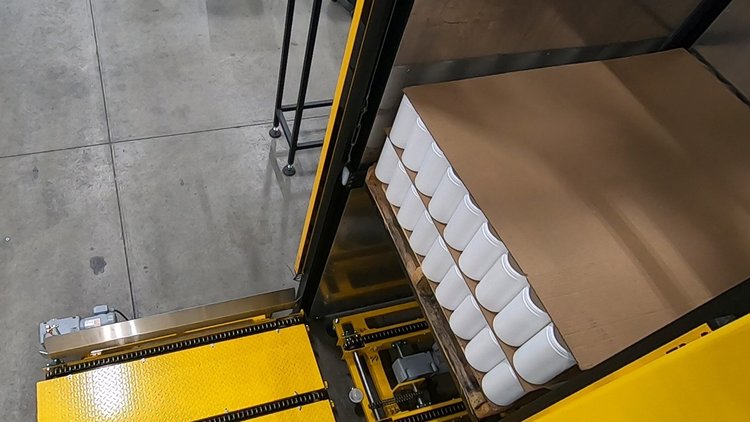

The FHP Palletizer featured in this video shows optional powered chain conveyor, pallet destacker, light curtain for door, side-grip elevator, and operator access platform. Does not show standard accumulation area now standard on the FHP Palletizer. This unit sweeps containers directly onto the palletizer.

Aluminum Cans

The FHP Palletizer featured in this video palletizes aluminum cans. Options shown include slip-sheet placement and side-grip elevator. This FHP Palletizer is part of a depal/repal complete system.
