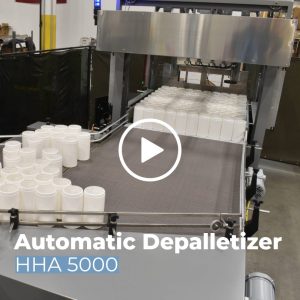

HHA 5000 Depalletizer

HHA 5000

Automatic Depalletizer

The Ska Fab HHA 5000 automatic depalletizer for half-height pallets features electrically driven lift and sweep assembly motors that allow for smooth, reliable, and continuous operation. It securely accepts half-pallets of empty glass, aluminum or plastic containers.

TECH SPECS

  • Heavy-duty tubular carbon steel frame construction
  • Adjustable side-walls
  • Industrial powder-coated finish for enhanced corrosion protection
  • Steel internal side-walls and aluminum external side-walls
  • Pallet configuration: 44” x 56” or 40” x 48”
  • Outfeed elevation: 46”, 51” or 53” to the bottom of the top layer of containers
  • 3hp motor with 4,000 lb. lifting capacity
  • Integrated four-point cable-lift system built within the frame
  • Easily adjustable elevation detection system for precise layer indexing
  • Sweep assembly frame initiates when downstream photo eye indicates space available
  • Pneumatic slip-sheet removal system
  • Tubular carbon steel slip-sheet cart powder-coated safety yellow

ELECTRICAL SPECS

  • User friendly HMI touch screen (7” LCD) with auto/manual controls
  • Multicolor LED stack light indicator for pallet change over and/or machine fault
  • Electrical panel safety disconnect/lockout and e-stop for operator safety
  • Electrical interlocked safety access doors throughout
  • 480V / 3 Phase / 60 Hertz (additional voltages available)
  • 80-100 PSI clean air supply required (2-3 CFM)

CONTROLS SPECS

  • Fully integrated PLC with quick-access diagnostic screen
  • Main screen shows how many layers are programmed to run and keeps count of how many layers have ran
  • 20 product (container) presets in product selection menu
  • Product presets allow for tool-less product changeovers
HHA 5000 Features & Specifications:

Additional Machine Options

Discharge Conveyors

Accumulation tables and conveyors are designed to hold and move your glass bottles/jars, plastic containers, aluminum, and steel cans at different points during the conveying or packing process.

Ska Fab will help you pair your depalletizer with the right discharge conveyor to meet your speed and space requirements.

Play Video

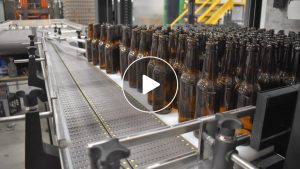

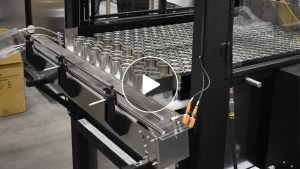

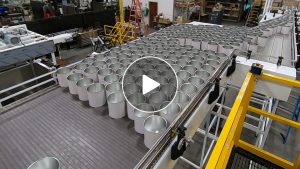

Single and Dual Lane Discharge Conveyors

Play Video

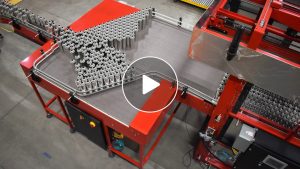

Bi-Directional Mass Accumulation Table

Play Video

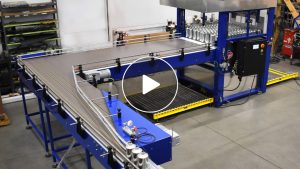

High Speed Single Filer with Mass Accumulation Table

Additional Machine Options

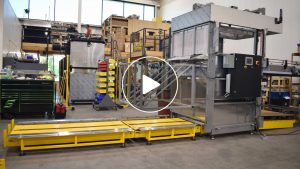

Ska Fab offers gravity roller conveyors for loading and staging your pallet.

Decline chutes and table top conveyors are customized to bring your containers to your line level and door safety light curtains replace the traditional depalletizer door to allow for quick loading of your pallet.

Personalize your depalletizer and conveyors with a custom powder coated frame color and corporate logo decals to make your brand stand out.

Play Video

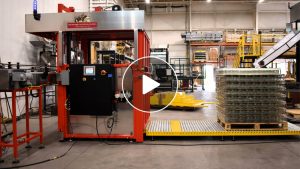

Gravity Roller Conveyor

Play Video

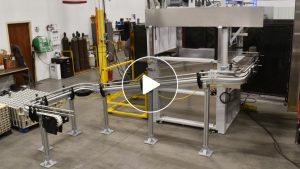

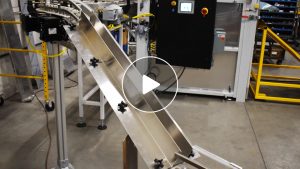

Custom decline chutes and table top conveyors

Custom logo decal and custom powder-coated frame color (white)

Light Curtain (replaces traditional door)
